Technical Specifications
Technical Characteristics

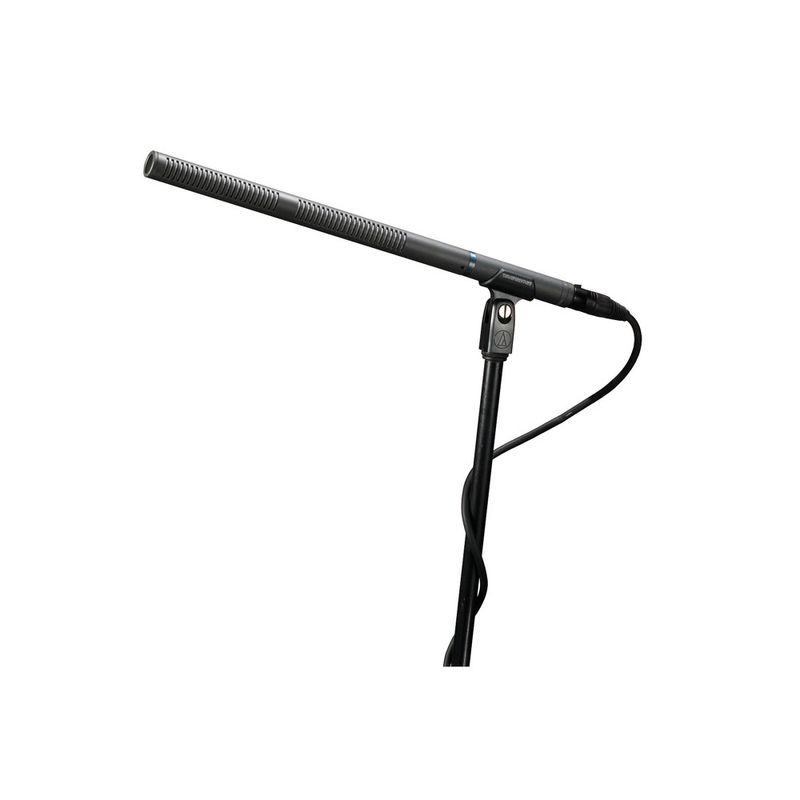

The AT8035 from Audio-Technica is a fixed-charge shotgun condenser microphone with a line + gradient polar pattern well suited for video production, broadcast audio acquisition, wildlife recording, and high-quality sound reinforcement. The microphone requires 11 to 52V phantom power, but may be powered from a 1.5V AA battery.
The AT8035 features a highly directional polar pattern that provides a narrow acceptance angle to provide crisp, clear audio reproduction that is desirable for long-distance sound pickup. The microphone offers a frequency response of 40 Hz to 20 kHz and features an 80 Hz low frequency roll-off switch to help eliminate undesired rumble. The microphone is enclosed in a rugged housing and features a standard 3-pin XLRM type connector. The AT8035 ships with a stand clamp for 5/8"-27 threaded stands, a 5/8"-27 to 3/8"-16 threaded adapter, a windscreen, an AA battery, and a protective carrying case.
| Transducer | Fixed-Charged, Back Plate, Permanently PolarizedCondenser |
| Polar Pattern | Line + Gradient |
| Frequency Response | 40 Hz to 20 kHz |
| Low Frequency Roll-Off | 80 Hz, 12 dB/octave |
| Open Circuit Sensitivity | Phantom: -38 dB (12.5 mV) re 1 V at 1 Pa Battery: -39 dB (11.2 mV) re 1 V at 1 Pa |
| Impedance | Phantom: 250 ohms Battery: 300 ohms |
| Max Input Sound Level (SPL) | Phantom: 132 dB SPL, 1 kHz at 1% THD Battery: 120 dB SPL, 1 kHz at 1% THD |
| Dynamic Range (Typical) | Phantom 110 dB, (1 kHz @ maximum SPL) Battery 98 dB, (1 kHz @ maximum SPL) |
| Signal-to-Noise Ratio | 72 dB, (1 kHz @ 1Pa / A-Weighted) |
| Phantom Power Requirements | 11 to 52 VDC Battery AA (1.5v) |
| Battery Type | AA/UM3: 1.5 V |
| Battery Current | 0.4 mA / 1200 hours typical (alkaline) |
| Output Connectors | XLR-3M Type |
| Switch | Flat, Roll-Off |
| Dimensions (LxDiameter) | 14.53 x 0.83" (369 X 21mm) |
| Weight | 6.0 oz. (170 g) |
