Behringer XENYX 502 5Channel Audio Mixer
Technical Characteristics
Product description
Behringer XENYX 502 5-Channel Audio Mixer
From Behringer, the Behringer XENYX 502 5-Channel Compact Audio Mixer audio mixers are designed to provide real-world features while remaining cost effective and practical.

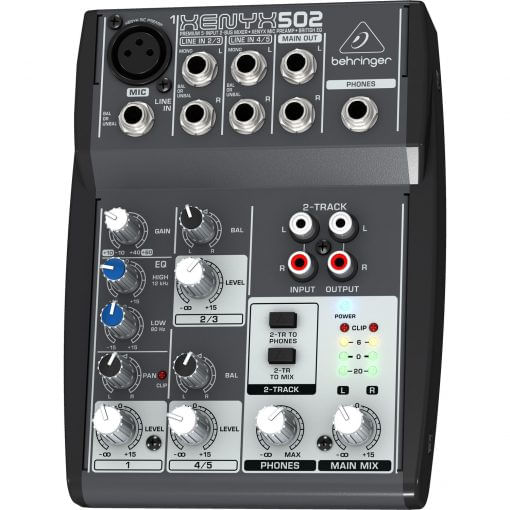

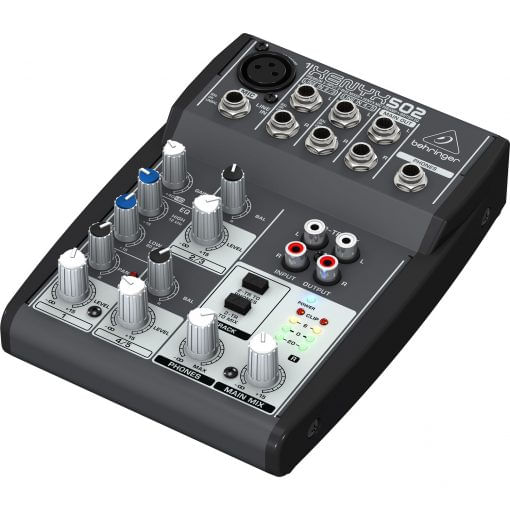

The Behringer XENYX 502 is a compact 5-channel audio mixer with a single microphone input and 5 line-level inputs. There is a microphone input and inputs 2/3 and 4/5 are stereo paired for use with keyboards, player/recorders and other stereo devices. An additional stereo I/O is provided for connecting tape and CD devices. The compact 502 is well-suited for project recording, home video editing, small PA systems and more.
5 Total Input Channels
Stereo Inputs
Compact and Portable
Premium 5-Input 2-Bus Mixer with Xenyx Mic Preamp and British EQ
Got a solo gig at the local coffee shop? Need to make a quick public announcement? Simple sound calls for the simply superb Xenyx 502, the mixer with everything you need to give an intimate setting incredible sound. The ultra-compact Xenyx 502 mixer’s 5 Inputs (1 mic, 2 stereo) allow you to effortlessly achieve premium-quality sound, thanks to the studio-grade, phantom-powered Xenyx Mic Preamp and ultra-musical ‘British’ channel EQ
Specs:
| Brands |
|---|
| Total # Of Inputs | 5 Inputs |
| Mic/Line Inputs | 1 Mic: 3-Pin XLR 5 Line: 1/4″ TRS Phone |
| Stereo Line Inputs | 2 Stereo: L/R Paired 1/4″ TRS Phone channels 2/3 and 4/5 |
| In-Line Inputs/Returns | No |
| AUX Sends | No |
| AUX Returns | No |
| Inserts | No |
| BUS (Group) Outputs | Stereo Main Only: L/R 1/4″ TRS Phone |
| 2 Trk Master I/O | CD/Tape – Input: L/R RCA Phono Output: L/R RCA Phono |
| ALT I/O | No |
| Monitor Outputs | Phones: 1/4″ Stereo |
| EQ Section | Low: 80 Hz +/- 15 dB High: 12 kHz +/- 15 dB |
| Solo/Mute | No |
| Channel Level Control | Rotary Controls |
| Trim/Gain Control | No |
| Phantom Power | Yes |
| Metering | Stereo: 4-segment Peak LED meters |
| Frequency Response | 10 Hz to 20 kHz (-3 dB) |
| Dynamic Range | Not Specified by Manufacturer |
| Signal-to-Noise Ratio | 110 dB / 112 dB A-weighted |
| Total Harmonic Distortion (THD) | 0.005% / 0.004% A-weighted |
| Power Supply | 13W USA/Canada 120 V~, 60 Hz, MXUL5 adapter |
| Dimensions (HxWxD) | 1.85 x 5.27 x 6.97″ (47 x 134 x 177 mm) |
| Weight | 1.21 lb (0.55 kg) |
| Package Weight | 3.245 lb |
| Box Dimensions (LxWxH) | 11.85 x 8.9 x 3.5″ |
