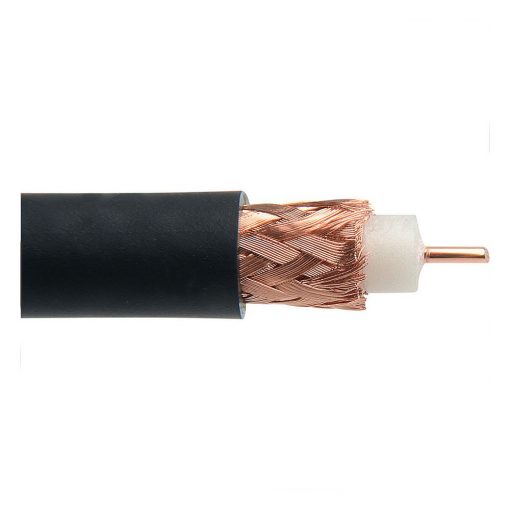

Canare L-5CFW Flexible Digital Coaxial Cable

• Serial Digital Video Coaxial Cable
• Solid 1.05mm copper center conductor
• Double braided shield enables flexibility and good bending performance
• Foam PE dielectric insulation
• Precision, 100% sweep tested coax. Canare L-5CFW Flexible Digital Coaxial Cable
• Ideal for HD- SDI video, HDTV upgrade, and broadband applications
• Supports SMPTE 259M, 292M, and 424M signals
• Strength: 1000 VAC / min
• Outer Diameter Nominal: 0.30″ (7.7 mm)
• Insulation: 0.19″ (4.9 mm)
• Attenuation: at 10 MHz: 2.1 dB per 100 m
• Conductor D.C.R. 2.3 Ω per 100 m
• Shield D.C.R 0.5 Ω per 100 m
• Nominal Capacitance: at 1 KHz: 17 pF per ft (55 pF per meter)
• Impedance: 75 Ω
