Rack-Mount 23 in. (58.4 cm) EIA Included

Jumbo Frame Support 9 KB

Routing Protocol Static IPv4 routing

Minimum Storage Temperature -4 F

Depth 13.78 inches

MTBF 135,669 hours at 50C

Cables Included 1x Serial Cable

Capacity 4K Active VLANs

Height 1.73 inches

Maximum Operating Temperature 104 F

MAC Address Table Size 16k entries

Localization Chinese (simplified), English, German, French, Italian, Spanish, Japanese

Width 17.3 inches

Enclosure Type Desktop, rack-mountable - 1U

Maxiumum Storage Temperature 158 F

Ports 24-port 10/100 + 4 combo Gigabit SFP

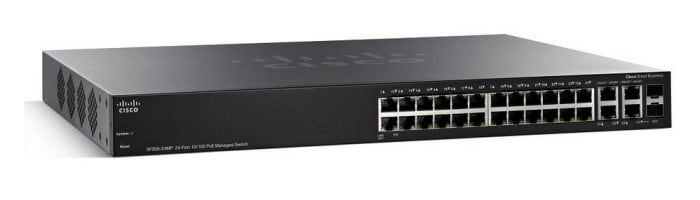

Device Type Switch - 24 ports - L3 - managed

Humidity Operating Range 10-90% (non-condensing)

Weight 11.73 lbs

Minimum Operating Temperature 32 F

Interfaces 24 x 10BASE-T/100BASE-TX - RJ-45 - PoE; 1 x console - 9 pin D-Sub (DB-9) - management; 4 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45; 2 x SFP (mini-GBIC)

Humidity Storage Range 10-90% (non-condensing)

Flash Memory 16 MB

Voltage Required

AC 120/230 V ( 50/60 Hz )

Performance

Switching capacity: 12.8 Gbps; Forwarding performance (64-byte packet size): 9.52 Mpps

Power Device External power adapter

Power Over Ethernet (PoE) PoE/PoE+

Status Indicators Link activity, port transmission speed, system

Ram 128 MB

Authentication Method Secure Shell (SSH), RADIUS, TACACS+
