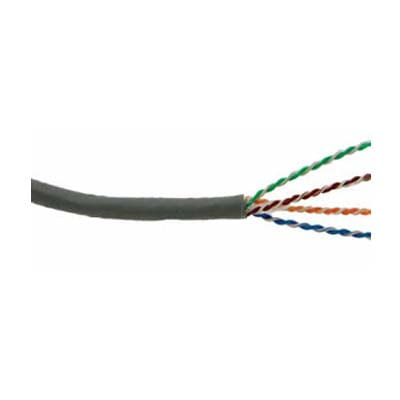

D-Link (NCB-6AUGRYR-305LZ) Cat 6A UTP 23AWG 10G  PVC Solid Cable LSZH

• 4 Pairs Unshielded Twisted Pair (UTP) Cable
• Conductor Metal: Bare Copper
• Color Code: Gray
• Jacket Material: PVC UL94V-0/LSZH
• PE Central Cross separator
• Available in 305 mtr and 500 mtr MDF spools in a box

Specification

• Nominal Velocity of Propagation: 69%
• Characteristic Impedance: 100+15Ω
• Conductor Resistance: < 9.38Ω/100m
• Mutual Capacitance: < 5.6nF/100m
• Resistance Unbalance: 5% Max
• Capacitance Unbalance: 330pF/100m
• Delay Skew: < 45nS
• Conductor Diameter : 0.574mm Nominal
• Insulation Diameter: 1.04mm Nominal
• Insulation Material: HD-PE
• Cable Diameter: 8.0mm Nominal
