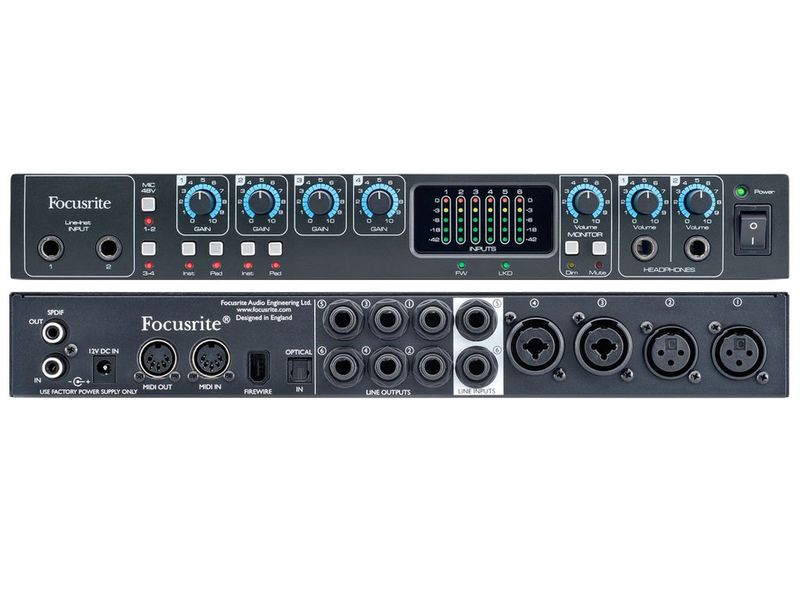

Front Panel

• 2 x Line/Instrument inputs (line inputs also available on rear panel)
• 2 x Headphone outputs with independent volume controls
• Main monitor volume control with dim and mute switches
• 6 x 5-segment LED input metering
• 2 x 8dB pad switches on inputs 1 & 2
• 2 x line/instrument switches on inputs 1 & 2
• 2 x Phantom power switches (1-2) & (3-4)
• 4 x gain knobs for preamp gain

Rear Panel

• 2 x XLR microphone inputs
• 2 x Combi XLR/TRS Mic/line inputs
• 2 x Additional Line inputs
• 6 x balanced TRS outputs
• S/PDIF I/O
• ADAT input
• FireWire 400 port
• Power supply input

What comes in the box?

• Saffire PRO 26
• Power supply
• Getting started guide
• Software bundle code card
• FireWire 400 - 800 cable

Digital Performance

• A-D Dynamic Range: 109 dB A-weighted (all inputs)
• D-A Dynamic Range: 109 dB A-weighted (line outputs)
• Supported Sample Rates: 44.1kHz, 48 kHz, 88.2 kHz, 96 kHz

Microphone Inputs

• Frequency Response: 20Hz - 20kHz +/- 0.1 dB
• THD + N: < 0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)
• Noise (NiPoS): 90 dBFS (22Hz/22kHz bandpass filter)
• Maximum Input Level: +8 dBu at 1% (A-weighted)

Line Inputs

• Frequency Response: 20Hz - 20kHz +/- 0.1dB
• THD + N: < 0.001% (measured with 0 dBFS input and 22Hz/22kHz bandpass filter)
• Noise (NiPoS): 90dBFS (22Hz/22kHz bandpass filter)
• Maximum Input Level: 28.5 dBu at 1% (A-weighted)

Instrument Inputs

• Frequency Response: 20Hz-20kHz +/- 0.1dB
• THD + N: -1 dBFS, min gain, no pad 0.0015%
• Maximum Input Level: +8dBu (min gain, without pad)

Headphone Outputs

• Frequency Response: 20Hz-20kHz +/- 0.1 dB
• Maximum Output into 32R: +12.4 dBu (+10.2 dBV)
• Power into 32R: 250mW
• Output Impedance: < 7 Ohms
• Load Impedance: > 24 Ohms

Line Level Outputs

• THD + N: <0.001% (measured with 0dBFS input and 22Hz/22kHz bandpass filter)
• Maximum Output Level (0dBFS): 15.7 dBu at 0.883% (A-weighted)

Additional Conversion Performance

• Clock Jitter: < 250 picoseconds
• THD + N AMPL: -109 dBFS (A-weighted)

Other I/O

• 1 x FireWire 400 Socket
• 2 x Standard 5-Pin DIN MIDI Connectors

Weights and Dimensions

• Weight: 2.98kg
• Height: 108mm
• Width: 273mm
• Depth: 470mm
