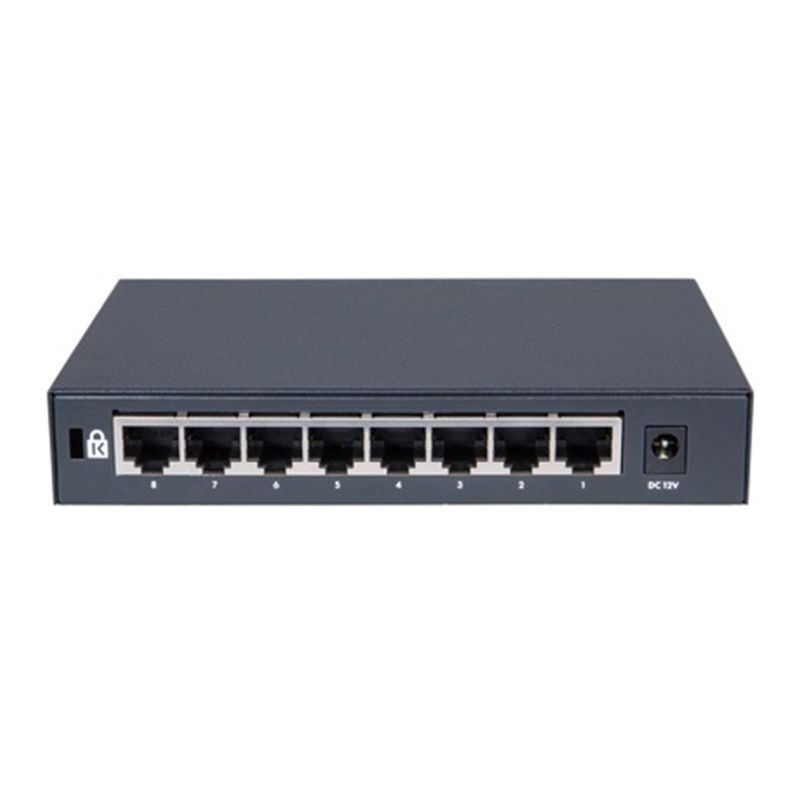

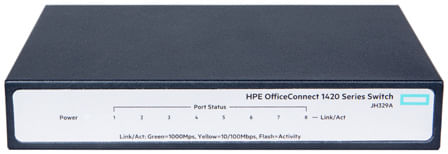

HPE JH329A OfficeConnect 1420 8G Switch

Name: HPE JH329A OfficeConnect 1420 8G Switch
Brand: HP
SKU: 00330378

PKR 11,999.00

Up to 1x PKR 11,999.00 interest-free

Reference: 330378

Quantity

Technical Specifications

Technical Characteristics

Product description

JH329A Specifications
Type	HPE Officeconnect 1420 8G Switch
I/O ports and slots	· 8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T) · Media type: Auto-MDIX · Duplex: 10BASE-T/100BASE-TX: half or full 1000BASE-T: full only supports a maximum of 8 autosensing 10/100/1000 port
Memory and processor	Packet buffer size: 1.5Mb
Mounting and enclosure	Desktop (rear port)
100Mb latency	< 3 μs
1000Mb latency	< 2.6 μs
10 Gb/s Latency	N/A
Throughput	up to 11.8 Mp/s
Switching capacity	16 Gb/s
MAC address table size	4096 entries
Reliability: MTBF (years)	N/A
Dimensions	2.69 x 15.77 x 10.49 cm ( 1.06 x 6.21 x 4.13 in)
Weight	0.5 kg ( 1.10 lb)
Frequency	50/60 Hz
Maximum heat dissipation	N/A
Voltage	100 - 240 V ac (rated)
Current	N/A
Maximum power rating	4.5 W4
PoE power	N/A
Operating temperature	0°C to 40°C(32°F to 104°F)
Operating relative humidity	5% to 95%, non condensing
Non operating/Storage temperature	-40°C to 70°C(-40°F to 158°F)
Non operating/Storage relative humidity	5% to 95%, non condensing
Altitude	N/A
Acoustic	Fanless
Safety	EN 60950/IEC 60950 UL 60950 IEC 60950-1 EN 60950-1 CAN/CSA-C22.2 No. 60950-1-03
Emissions	FCC Rules Part 15, Subpart B Class A
Generic	EN 55022 CISPR 22
EN	EN 55024, CISPR 24
ESD	IEC 61000-4-2
Radiated	IEC 61000-4-3
EFT/Burst	IEC 61000-4-4
Surge	IEC 61000-4-5
Conducted	IEC 61000-4-6
Power frequency magnetic field	IEC 61000-4-8
Voltage dips and interruptions	IEC 61000-4-11
Harmonics	IEC 61000-3-2
Flicker	IEC 61000-3-3
