JH330A Specifications

Type

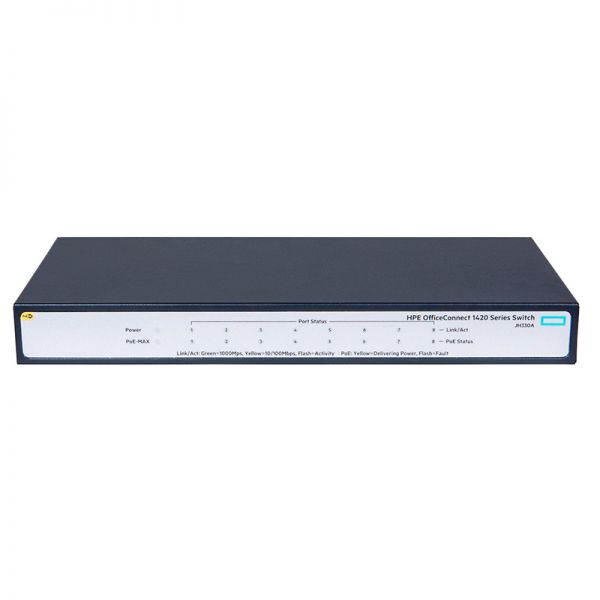

HPE Officeconnect1420 8G POE+ (64W) Switch

I/O ports and slots

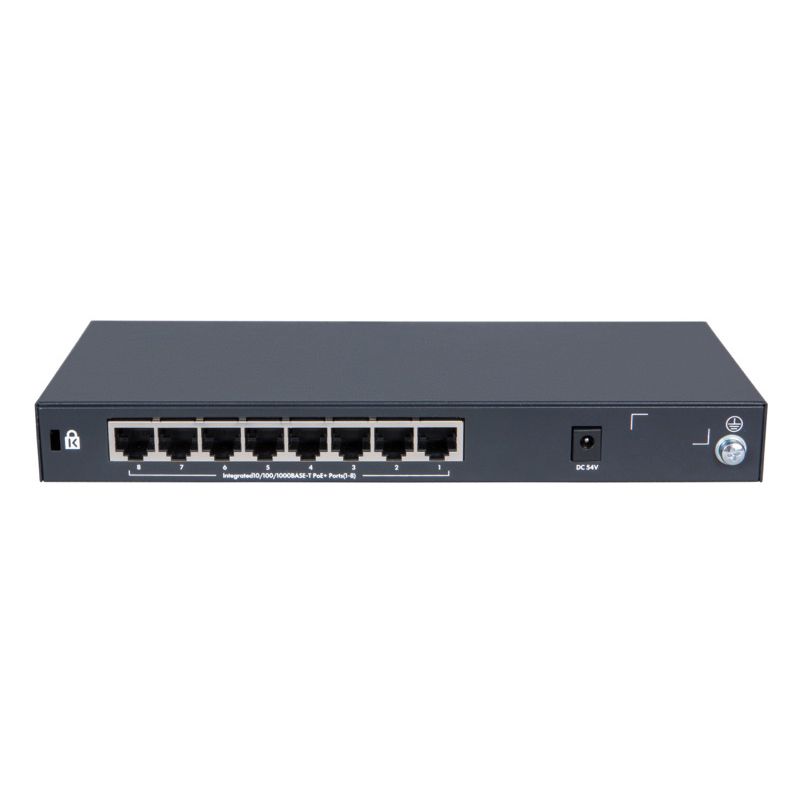

· 8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T)

· Media type: Auto-MDIX

· Duplex: 10BASE-T/100BASE-TX: half or full

· 1000BASE-T: full only supports a maximum of 8 autosensing 10/100/1000 port

Memory and processor

Packet buffer size: 1.5Mb

Mounting and enclosure

Desktop (rear port)

100Mb latency

< 3 μs

1000Mb latency

< 2.6 μs

10 Gb/s Latency

N/A

Throughput

up to 11.8 Mp/s

Switching capacity

16 Gb/s

MAC address table size

4096 entries

Reliability: MTBF (years)

N/A

Dimensions

2.69 x 23.47 x 10.49 cm (1.06 x 9.24 x 4.13 in)

Weight

0.7 kg (1.54 lb)

Frequency

50/60 Hz

Maximum heat dissipation

N/A

Voltage

100 - 240 V ac (rated)

Current

N/A

Maximum power rating

80 W5

PoE power

64 W PoE+

Operating temperature

0°C to 40°C(32°F to 104°F)

Operating relative humidity

15% to 95% at 40°C (104°F), noncondensing

Non operating/Storage temperature

-40°C to 70°C(-40°F to 158°F)

Non operating/Storage relative humidity

15% to 90% at 65°C (149°F), non condensing

Altitude

Up to 3 km (10,000 ft)

Acoustic

Fanless

Safety

CSA 22.2 No. 60950

EN 60950/IEC 60950

UL 60950-1

Emissions

FCC Rules Part 15, Subpart B Class A

Generic

EN 55022 CISPR 22

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

IEC 61000-3-2

Flicker

IEC 61000-3-2
