ICON Global M2 Large Diaphragm Studio Condenser Microphone

PKR 15,299.00
Up to 1x PKR 15,299.00 interest-free

Reference: 172409
Quantity
Share

Related

Technical Specifications

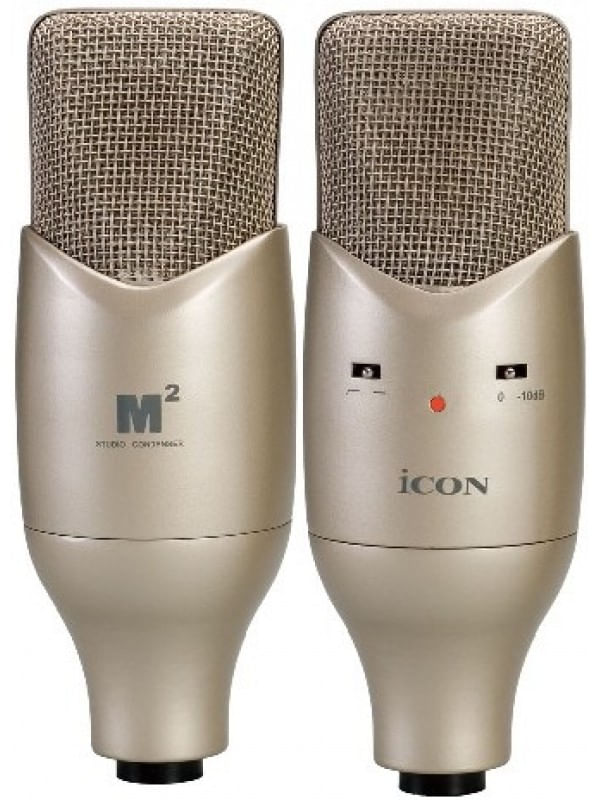

ICON Global M2 Large Diaphragm Studio Condenser Microphone

Technical Characteristics

Product description

M2 is a true large diaphragm (1”) condenser. Comes in singular cardioid pattern. Switchable high-pass filter & 10 dB pad. Class A preamp with very low self noise yet has high output level and high SPL. Comes in striking light gold color, optional swivel mount (SM02)

  • Golden painted “True” large diaphragm with active mylar foil diameter of 1in (25mm)

  • Cardioid pattern

  • Switchable high-pass filter and 10dB pad

  • Class A preamplifier circuitry eliminates cross-over distortion

  • Very low self-noise

  • Exceptional low-frequency reproduction

  • High output level

  • High input SPL capability

  • No cross-over distortion

  • Extremely uniform polar response

  • Classic character and rugged construction

  • Optional swivel mount



Acoustical operating principle Pressure gradient transducer
Frequency range 20Hz to 20kHz
Sensitivity -37dBV/Pa
Rated impedance 200 ohms
Min. load impedance 1000 ohms
SPL 144dB
S/N ratio 78dB
Dynamic range: 128dB
Power supply: 48V (+/-3V)
Current consumption: 4mA
Weight: 0.39kg (0.9lbs)
Dimensions (Diameter x L): 63mm(dia.) x 175mm(L)
  2.5”(dia.) x 6.9”(L)
