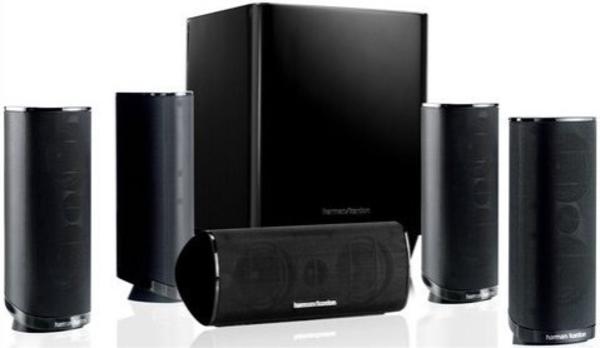

The Harman Kardon HKTS 16 system is a complete 5.1-channel speaker package that takes all the guesswork out of the home theatre equation, surrounding you with the captivating, all-encompassing sound that you associate with your favourite cineplex. With dual midrange centre and satellite speakers that are engineered for optimal performance, and a down-firing, 200-watt
powered subwoofer that adds serious bass punch, the HKTS 16 package delivers over-the-top Hollywood excitement movie after movie, year after year.
| Satellite Speaker Features |
| Type | CEN-TS11 |
| Midrange Transducer | 2 x 75mm (3") cones, video shielded |
| High-Frequency Transducer | 13mm (1/2") dome, video shielded |
| Maximum Recommended Amplifier Power | 120 Watts |
| Frequency Response | 35Hz - 20kHz (-6dB) |
| Nominal Impedance | 8 Ohm |
| Sensitivity (2.83V@1m) | 86 dB |
| Enclosure Type | Sealed |
| Wall-Mount Capable | Brackets included |
| Finish | Black lacquer |
| Grille Color | Black |
| Dimensions (H x W x D – Metric, English) | 243mm x 100mm x 92mm |
| Weight (Metric, English) | 1kg |
| Center Speaker Features |
| Type | CEN-TS11 |
| Midrange Transducer | 2 x 75mm (3") cones, video shielded |
| High-Frequency Transducer | 19mm (1/9") dome, video shielded |
| Maximum Recommended Amplifier Power | 120 W |
| Nominal Impedance | 8 ohms |
| Sensitivity (2.83V @1m) | 86 dB |
| Enclosure Type | Sealed |
| Wall-Mount Capable | Brackets Included |
| Finish | Black lacquer |
| Grille Color | Black |
| Dimensions (H x W x D – Metric, English) | 102mm x 241mm x 92mm |
| Weight (Metric, English) | 1kg |
| Subwoofer Features |
| Low-Frequency Transducer | 200mm (8") cone |
| Enclosure Type | Sealed |
| Amplifier Power (RMS) | 200 W |
| External Trigger Input/ Voltage | 3V - 30V AC/DC |
| Finish | Black lacquer |
| Dimensions (H x W x D – Metric/English) | 353mm x 267mm x 267mm |
| Weight (Metric/English) | 9kg |
Transform your living space into your own private screening room

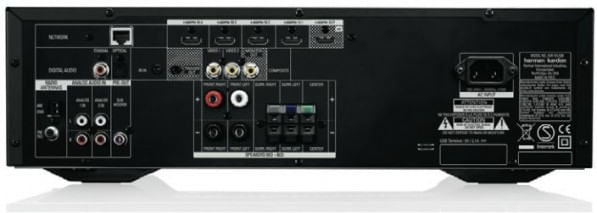

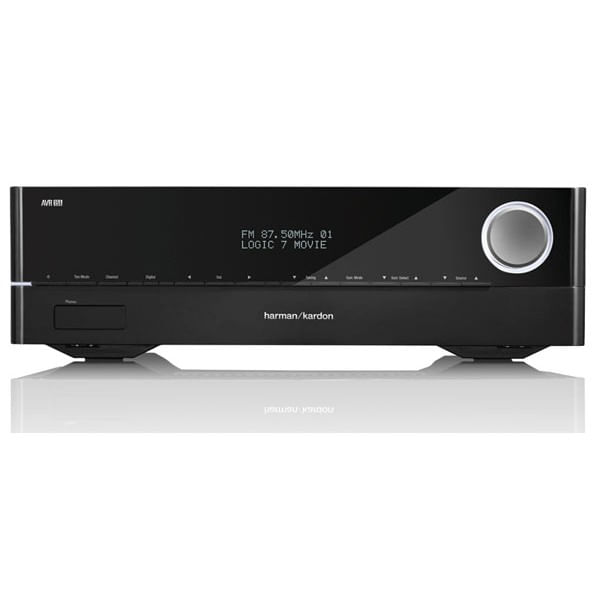

This 425-watt, high-performance, 5.1-channel A/V receiver gives you more ways to connect to your favorite music, movies and shows.
There are countless ways to access and store your favorite media, from external hard drives to set-top cable boxes to smartphones. But if your home audio/video receiver doesn’t give you options for connecting to those media, it’s borderline useless. The Harman Kardon® AVR 161 gives you a simple way to connect to everything you love.
This 425-watt, 5.1-channel, networked audio/video receiver is loaded with options that let you access your media. It features five 3D-ready HDMI® inputs, including one compatible with MHL, so you’ll have more than enough ways to access content on your HD cable box, Blu-ray™ player, MHL-equipped portable devices or Roku Streaming Stick™ dongle. It also includes DLNA® 1.5 networking and HARMAN TrueStream Bluetooth® technology so you can stream high-fidelity audio from your mobile devices.
Regarding sound, the AVR 161 features our exclusive Natural Sound Processing (NSP), which creates a rich, enveloping sound from any source – particularly with two-channel streaming content. And to get the very best sound based on your speakers and listening environment, its new EZSet/EQ™ III process automatically calibrates the system. And with HARMAN GreenEdge™ technology, the AVR 161 is environmentally friendly, too.
| VIDEO FEATURES |
| Television Format | PAL |
| Input Level/Impedance | 1 Vp-p/75 ohms |
| Output Level/Impedance | 1 Vp-p/75 ohms |
| Video Frequency Response (Component Video) | 10 Hz – 8 MHz (–3 dB) |
| HDMI Input / Output | 4 K x 2 K |
| HDMI Version | 1.4 a with 3D support |
| FM TUNER FEATURES |
| Frequency Range | 87.5 MHz – 108.0 MHz MHz |
| Usable Sensitivity (IHF) | 1.3 μV/13.2 dBf |
| Signal-to-Noise Ratio (Mono/Stereo) | 70 dB/68 dB |
| Distortion (Mono/Stereo) | 0.2%/0.3% |
| Stereo Separation @ 1kHz | 40 dB |
| Selectivity ±400kHz | 70 dB |
| Image Rejection | 80 |
| IF Rejection | 80 |
| AM TUNER SPECIFICATIONS |
| Frequency Range kHz | 522 kHz – 1,620 kHz kHz |
| Signal-to-Noise Ratio | 38 dB |
| Usable Sensitivity (Loop) | 425 µV |
| Distortion | 1.0% |
| Selectivity | (±10 kHz): 30 dB |
| GENERAL SPECIFICATIONS |
| Power Requirement | 220V - 240V AC, 50Hz/60Hz |
| Power Consumption (full power/idle) | 0.5 W (standby); 450 W maximum |
| Dimensions (H x W x D – Metric/English) | 121 mm x 440 mm x 300 mm |
| Weight (Metric/English) | 4.6 kg (10 lb) |
