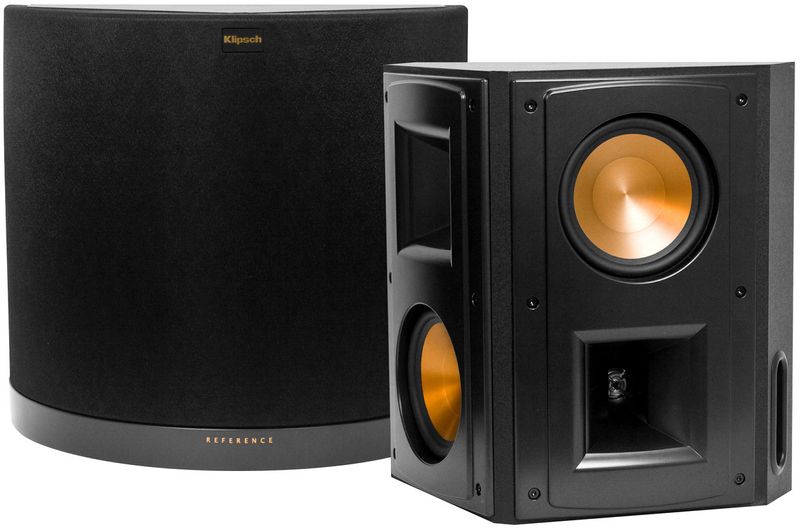

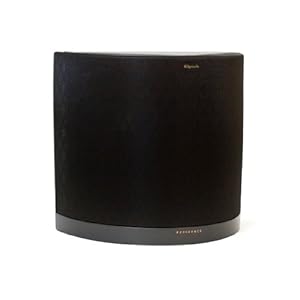

Revealing surprising layers of detail, the Reference Series RS-52 II brings a
huge dose of reality and convenience to the world of surround sound. Let’s
just say you’ll hear everything in its full glory no matter where you sit.

• A superior choice for enveloping home theater entertainment
• Adept at localizing specific surround effects
• Highly efficient design produces more output using less energy
• Dual 1" titanium horn-loaded tweeters, dual 5.25" high-output woofers
• Dimensions: 13" H x 12.6" W x 8.5" D
• Keyhole bracket and dual threaded inserts for easy installation
• Sleek, modern-looking cabinet

The RS-52 II is complete with our proprietary Tractrix® Horn technology which produces a unique combination of precision, clarity and effortless power. Finished beautifully with matte black vinyl, the RS-52 II is guaranteed to complement any décor.

SPECIFICATIONS

• BUILT FROM: 2010
• DEPTH: 8" (20.2cm)
• ENCLOSURE TYPE: Bass-reflex via dual side-firing ports
• FINISH: Matte Black vinyl
• FREQUENCY RESPONSE: 58Hz-24KHz ± 3dB
• HEIGHT: 13" (33.1cm)
• HIGH FREQUENCY CROSSOVER: 1500Hz
• HIGH FREQUENCY DRIVER: Dual 1" (2.54cm) Titanium diaphragm compression drivers mated to 90° x 60° square Tractrix® Horns
• INPUTS: Single binding posts
• LOW FREQUENCY DRIVER: Dual 5.25" (13.3cm) Cerametallic cone woofers
• MOUNTING: Keyhole bracket and dual 1/4"-20 threaded inserts
• NOMINAL IMPEDANCE: 8 Ohms compatible
• POWER HANDLING: 100W RMS / 400W Peak
• SENSITIVITY: 95dB @ 2.83V / 1m
• WEIGHT: 14.7lbs (6.7kg)
• WIDTH: 14.3" (36.3cm)
