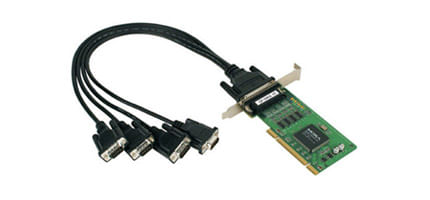

Moxa CP-104UL-9P Moxa 4-p RS-232 Board U/PCI w/Cable DB9 Male
Features and Benefits
- Over 800 kbps data throughput for top performance
- 921.6 kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible with 3.3/5V PCI and PCI-X
- Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
- 15 kV ESD protection on the board
- Wide temperature model available for -40 to 85°C environments
Overview
The CP-104UL and CP-104JU 4-port universal PCI boards are designed for POS and ATM applications. They are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even Unix. In addition, each of the boards’ RS-232 serial ports supports a super fast 921.6 kbps baudrate. The CP-104UL and CP-104JU provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3V and 5V PCI buses, allowing the boards to be installed in virtually any available PC server.
| Hardware | |
| Comm. Controller | MU860 (16C550C compatible) |
| Bus | 32-bit Universal PCI |
| Connectors | DB44 female |
| • Serial Interface | |
| Number of Ports | 4 |
| Serial Standards | RS-232 |
| Max. No. of Boards per PC | 4 |
| • Serial Line Protection | |
| ESD Protection | 15 kV on the board |
| • Performance | |
| Baudrate | 50 bps to 921.6 kbps |
| • Serial Communication Parameters | |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS, XON/XOFF |
| I/O Address | Assigned by BIOS |
| IRQ | Assigned by BIOS |
| • Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| • Operating Systems | |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
| Linux Real TTY Drivers | Linux 2.4.x, 2.6.x |
| Note | Please refer to Moxa’s website for the latest driver support information. |
| • Physical Characteristics | |
| Dimensions | 64.4 x 120 mm (2.53 x 4.72 in) |
| • Environmental Limits | |
| Operating Temperature | Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Altitude | Up to 2000 m |
| Note | Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Standards and Certifications | |
| EMC | CE, FCC |
| EMI | EN 55022, FCC Part 15 Subpart B Class B |
| EMS | EN 55024, IEC 61000-4-2, IEC 61000-4-3 |
| Green Product | RoHS, CRoHS, WEEE |
| • MTBF (mean time between failures) | |
| Time | 558,961 hrs |
| Database | MIL-HDBK-217F, GB 25°C |
| • Power Requirements | |
| Power Consumption | 120 mA @ +5 V |
