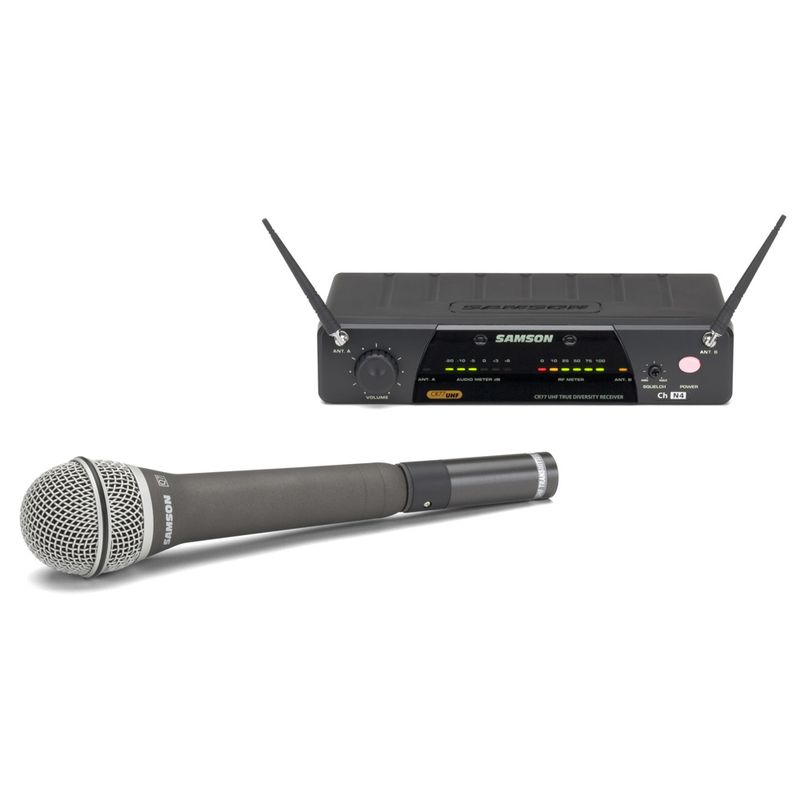

The Samson AX1/Q7 AirLine 77 Handheld Wireless Microphone System features the compact AX1 plug-in transmitter.

Q7 handheld dynamic microphone with XLR output connection, and CR77 true-diversity UHF receiver with 1/4″ phone and XLR output connections.

The miniature AX1 plug-in transmitter enables the user to adapt their favorite dynamic handheld microphone, or simply use the included Samson Q7 microphone.

Up to 14 hours of continuous operation is achieved on just a single AAA battery, and the AX1’s compact design makes it unobtrusive and lightweight.

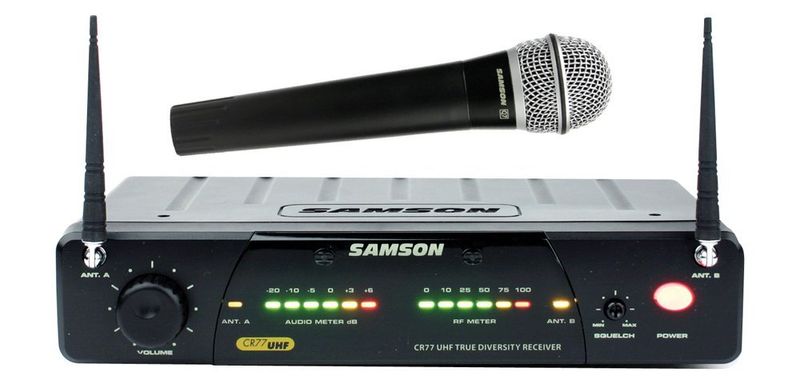

The CR77 true-diversity receiver is the heart of the Samson AX1/Q7 AirLine 77 Handheld Wireless Microphone System series and features PLL synthesized tuning.

True diversity reception, dual antennas, XLR and 1/4″ phone output connectors, RF level LED meters, and a large output volume control dial.

Features Samson AX1/Q7 AirLine 77 Handheld Wireless Microphone System

• AX1 transmitter plugs into any standard dynamic mic to make it wireless

• The transmitter features a power switch, power/battery LED, and input level control

• Single AAA battery operation allows up to 14 hours of life for AX1

• Includes Samson Q7 dynamic microphone

• True diversity UHF wireless handheld system with PLL frequency control

• CR77 receiver features multi-segment audio level and RF level LED meters

• Squelch and volume control

• XLR and unbalanced 1/4-inch outputs with mic/line level output switch

• AC adapter and 1/4-inch to 1/4-inch cable included

Key Features

• AX1 Plug-In Transmitter
• Q7 Handheld Dynamic Mic
• CR77 UHF Diversity Receiver
• 14 Hours with AAA Battery
