Size

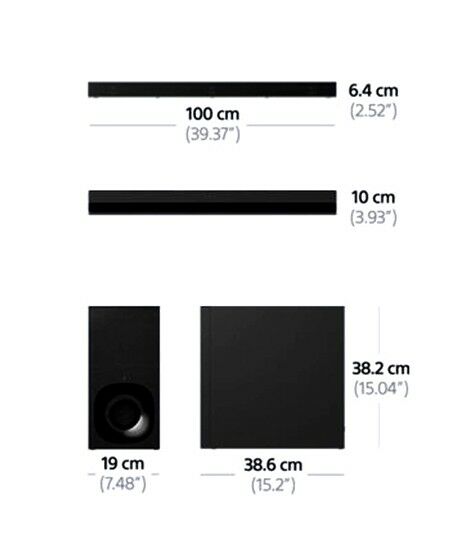

Main Unit Size – Body Only (W X H X D)

1000 x 64 x 99mm

Subwoofer Size (W X H X D)

190 x 382 x 386 mm

Amplifier

Amplifier Type

S-Master HX

Power Output (Total)

400W

Subwoofer

Subwoofer Type

Wireless Subwoofer

Interface

Input And Output Terminals

HDMI™(ARC),Optical-audio input,Analog in (stereo mini),USB type A,Ethernet

Ieee802.11 Version

11a/b/g/n (2.4GHz/5GHz)

Bluetooth

RX (Receiver) / TX (Transmitter)

Bluetooth Version

version 4.2

Nfc

No

Hdcp2.2

Yes

HDMI

Number Of Input/Output

Input / Output: 2 / 1 (ARC)

4k/60p/Yuv4:4:4

Yes

Hdr

Yes

Dolby Vision™ Compatible

Yes

Hlg (Hybrid Log Gamma)

Yes

Hdcp2.2

Yes

Bravia Sync

Yes

Hdmi Cec

Yes

Audio Formats

Hdmi Input

Dolby® Digital, Dolby Digital Plus™, Dolby® TrueHD, Dolby Atmos®,Dolby® Dual mono,DTS®,DTS-HD High Resolution Audio™,DTS-HD Master Audio™,DTS-ES,DTS 96/24,DTS:X™,LPCM(2ch / 5.1ch / 7.1ch), DSD(2ch / 5.1ch),

Optical Input

Dolby® Digital, Dolby® Dual mono, DTS®, LPCM 2ch

Usb

DSD(.dsf / .diff), Wav, Flac, Alac(.m4a only), AIFF, HE AAC, AAC, mp3, Monkey Audio, WMA, Ogg Vorbis

Bluetooth(Receiver)

SBC, AAC, LDAC™

Bluetooth(Transmitter)

SBC, LDAC™

Sound Function

Sound Mode

Auto Sound, Cinema, Music, Game Studio, News, Sports, Standard

Sound Effect

Night Mode,Voice Mode

Virtual Surround Technology

S-Force PRO / Vertical Surround Engine

Speaker Layout

Speaker Structure

3.1ch

Bar Speaker

1

Subwoofer

1

Network Function

Network Function

Spotify Connect (This feature will be made available via a future firmware update.), DLNA (This feature will be made available via a future firmware update.)

Wireless Features

Wireless Surround

No

Wireless Surround (With Optional Wireless Speakers)

Yes

Tv Wireless Connection

Yes

Wireless Multi-Room

Yes

Details

Power Consumption

BAR 52W / Subwoofer 20W

Power Consumption(On Remote Start Mode)

BAR 0.5W/SW 0.5W (Network/Bluetooth® standby off)

Wall-Mountable

Yes (with supplied bracket)

What's In The Box

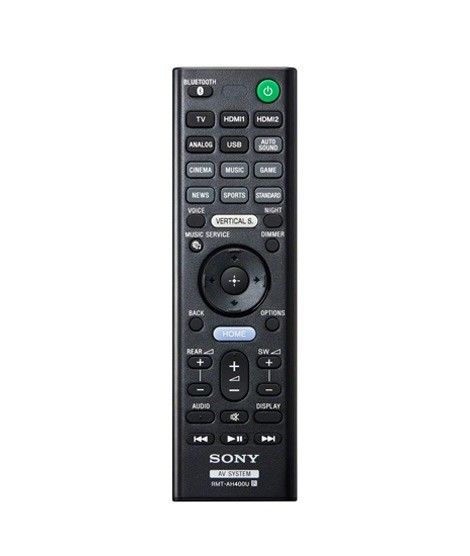

Remote Control

Batteries For Remote Commander

Hdmi Cable, Wall Hanging Bracket
