YUNEEC Typhoon H Hexacopter with Intel RealSense GCO3 4K Camera Wizard Wand and Backpack
Technical Characteristics
Product description
- Designed for Aerial Photo and Video
- Capture Up to 4K Video/12MP Still Photos
- RealSense Collision Avoidance System
- 3-Axis Gimbal Pans Full 360°
- ST16 Ground Station/Transmitter
- Typhoon H - 4K UHD Camera Drone

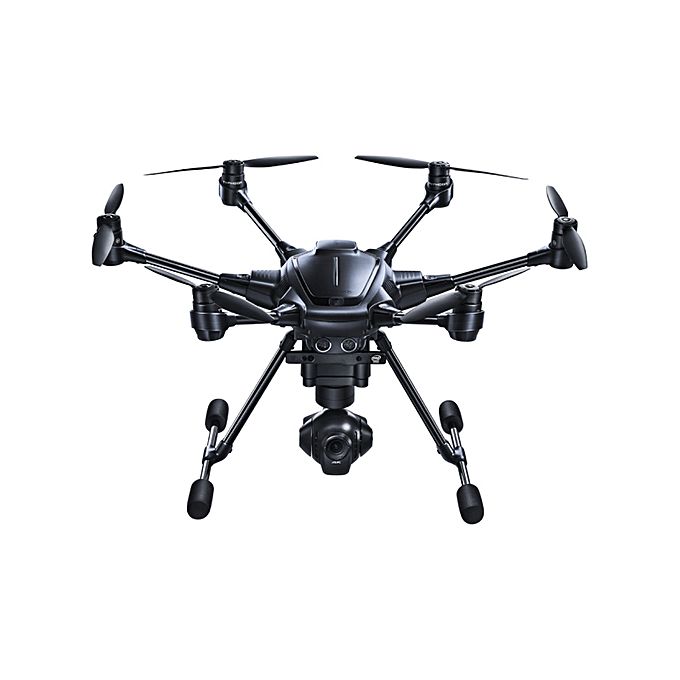

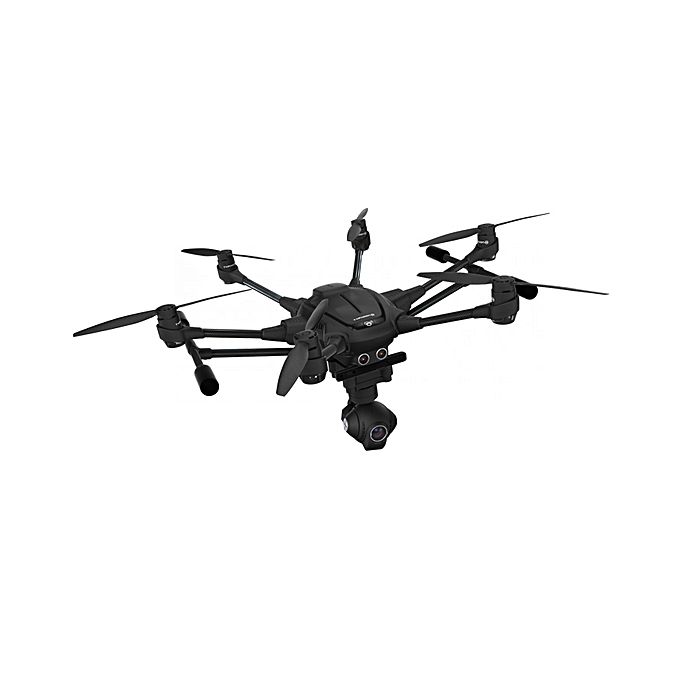

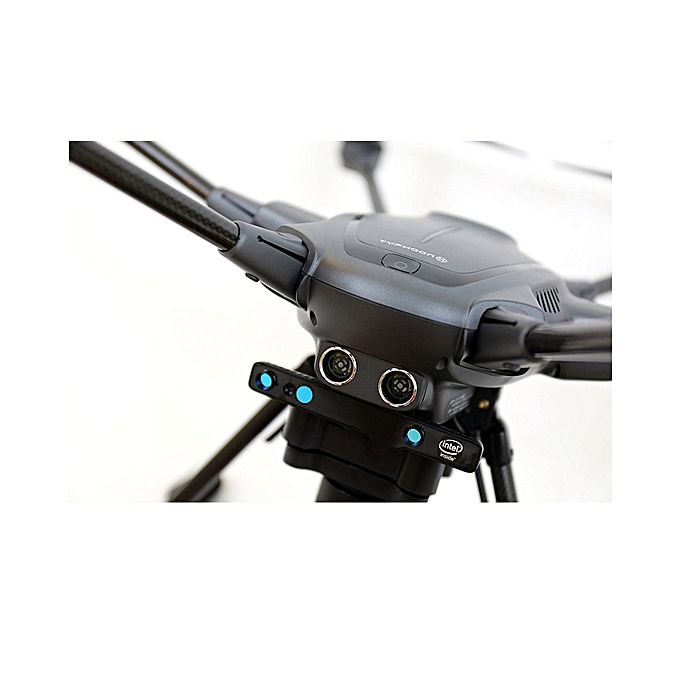

This version of the Typhoon H from YUNEECemploys Intel RealSense Technology for enhanced autonomously flying. This navigation aid maps the environment in 3D to help avoid obstacles and provide positional data when GPS is limited or unavailable. Additionally, the hexacopter hexacopter features the GCO3+ gimbal-stabilized, 4K camera with 12MP stills mode, making it a perfect choice for aerial imaging of all types. The Typhoon H's hexa-rotor design offers better flight stability and more precise control compared to four-rotor systems – plus, it means failure of a single motor will not be fatal. The landing gear retracts in-flight, offering an unobstructed 360 degrees of shooting. Carbon fiber parts and folding motor arms reduce the Typhoon H's weight and profile for easy transport – even to the remotest of locations.

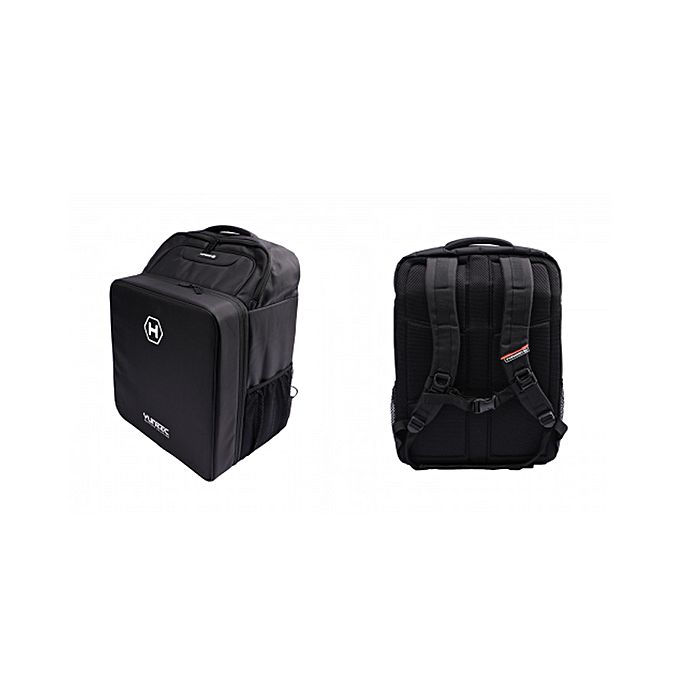

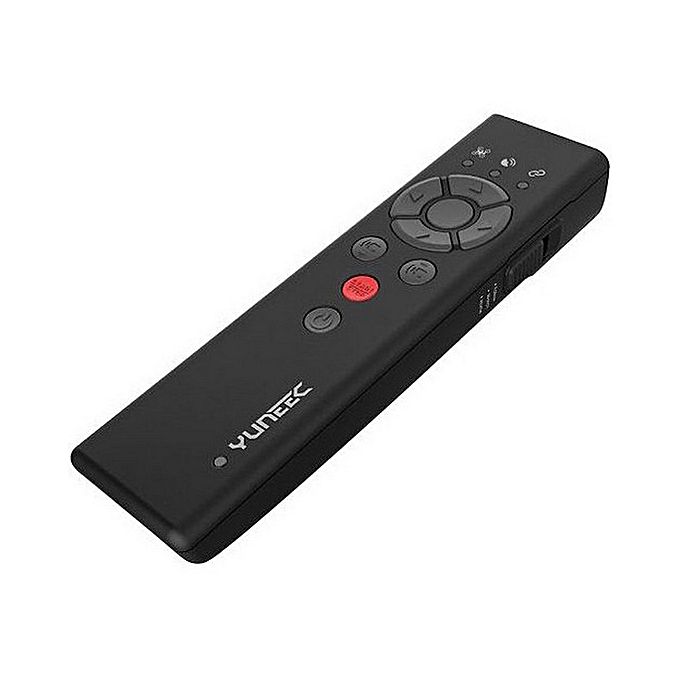

This bundle features the ST16 smart transmitter (radio controller), two flight batteries, the Wizard Wand controller, and a soft backpack.
Flight Control System

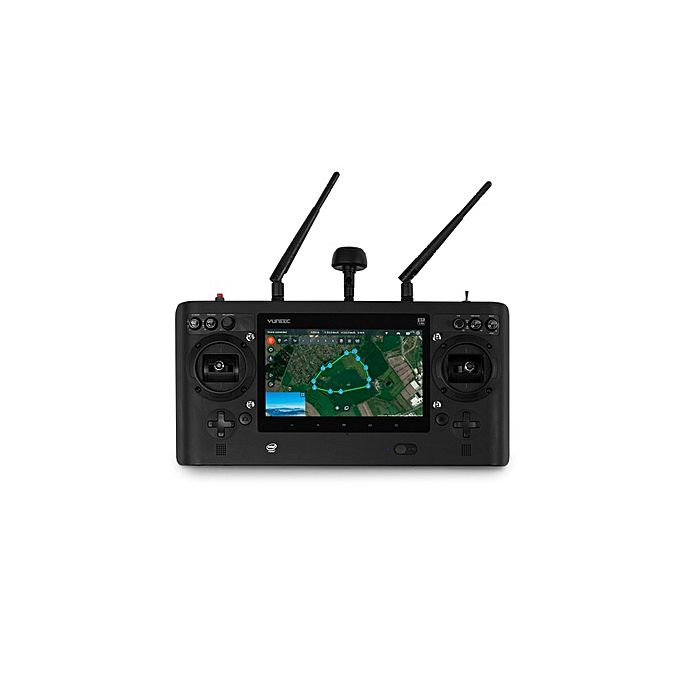

ST16 Personal Ground Station
CGO3+ 4K Camera with 3-Axis Gimbal
Airframe Design
| Performance | |
|---|---|
| Flight Time | Up to 22 minutes |
| Maximum Flying Height | 400' / 122 m above takeoff elevation (software enforced) |
| Maximum Rotational Velocity | 85 degrees/second |
| Maximum Roll Angle | 35° |
| Maximum Horizontal Speed | Angle Mode: 32.8 fps / 10 m/s |
| Maximum Climb Rate | 16.4 fps / 5 m/s |
| Maximum Descent Rate | 8.2 fps / 2.5 m/s |
| Takeoff Weight | 4 lb / 1.8 kg |
| Camera | |
|---|---|
| Model | CGO3+ |
| Lens | Focal Length: 14mm (35mm equivalent) Aperture: f/2.8 FOV: 115° Focus: Fixed |
| Resolution | Video: UHD 4K (3840 x 2160): 30p Photo: 12 MP |
| Shutter Speed | 1/30 to 1/8000 second |
| Power Consumption | 10 W |
| Weight | 8.8 oz / 250 g |
| Gimbal | |
|---|---|
| Control Angle Accuracy | Yaw (Pan): 360° |
| Video Transmitter | |
|---|---|
| Frequency | 5.8 GHz (5.2 to 5.8 GHz) |
| Range | Up to 1400' / 400 m line-of-sight |
| Flight Battery | |
|---|---|
| Capacity | 5400 mAh 79.9 Wh |
| Chemistry | Lithium-ion polymer (LiPo) |
| Voltage | 4S (14.8 V) |
| Charger | |
|---|---|
| Model | SC4000-4 |
| Transmitter | |
|---|---|
| Model | ST16 |
| Operating System | Android |
| Range | Control: 3000' / 1000 m |
| FPV Display | Size: 7" Resolution: 720p |
| Charger | 5 V USB charging (AC adapter included) |
| Motors | |
|---|---|
| Stator Size | 22 x 13 mm |
| Motor Velocity Constant | 850 Kv |
| Maximum Power | 200 W |
| ESCs | |
|---|---|
| Working Current | ≤15 A |
| Working Voltage | 12 to 25 V |
| Signal Frequency | 50 to 400 Hz |
| Drive PWM Frequency | 16 kHz |
| General | |
|---|---|
| Configuration | Hexacopter |
